Max. LOS Access

1 km/ext. (5 GHz)

Max. LOS CPE

4 km to A8-Ein(ac)

3 km to A3-Ei

Max. LOS Bridge

13 km

Max. Data Rate

300 Mbps

Super Long Range Coverage

Wireless Interface

802.11a/n (2×2) Radio

·  Operating Mode                   AP/ CPE/ Bridge/ Repeater

·  Standard                                  IEEE 802.11a/n

·  Operating Frequency          5.150 – 5.350 GHz

5.470 – 5.725 GHz

5.725 – 5.850 GHz

·  Transmit Power                       29 dBm (Max.)

26 dBm (Per Chain)

·  Receiver Sensitivity

802.11a         54 Mbps            -83 dBm

6 Mbps              -96 dBm

802.11n         HT20                   -95 dBm

HT40                   -91 dBm

·  16 SSID (Max.)

·  802.11h*, 802.11k*, 802.11r*, 802.11v*, 802.11w*

·  Hotspot 2.0

·  Altai AirFi™ Throughput Optimization

·  Band Steering

·  WMM (802.11e)

·Antenna

Built-in 5 GHz Antenna          14 dBi Dual Slant ±45° Sector

Horizontal Beamwidth         35 – 45° (-3 dB)

Vertical Beamwidth             15 – 20° (-3 dB)

Front-to-back Ratio               -20 dB (Max.)

Networking

·  Switch (Bridge) and Gateway Mode

·  IPv4/ IPv6 Dual-stack

·  NAT

·  DHCP Client/ Server

·  PPPoE Client

·  VPN (IPsec)*

·  VLAN

·  Bandwidth Control Per VAP/ Client

·  Multicast Rate Filter/IGMP Snooping

Security

·  Authentication – Open system, Shared key, WPA/ WPA-PSK,  WPA2/ WPA2-PSK, 802.1x (EAP-PEAP/ TLS/ TTLS/ SIM/ AKA)

·  Encryption – WEP, TKIP, AES

·  Inter/ Intra-client Isolation

·  MAC-based Access Control (White/ Black List)

·  RADIUS

·  Active directory

·  Firewall*

·  WIPS*

Management

·  Cloud or Server-based Management by AltaiCare

·  Controller-based Management by Access Controller

·  Web User Interface

·  Command Line Interface (SSH)

·  SNMP v1/ v2c / v3*

·  MIB2/ IF-MIB/ Altai Enterprise MIB

·  Syslog

·  Auto Channel Selection and TX Power Control

·  Spectral Analysis*

·  KPI Monitoring*

·  Client OS Detection*

Physical Specification

·  Dimension                               242 x 80 x 27 mm

(excluding mounting)

·  Weight                                      0.4 kg

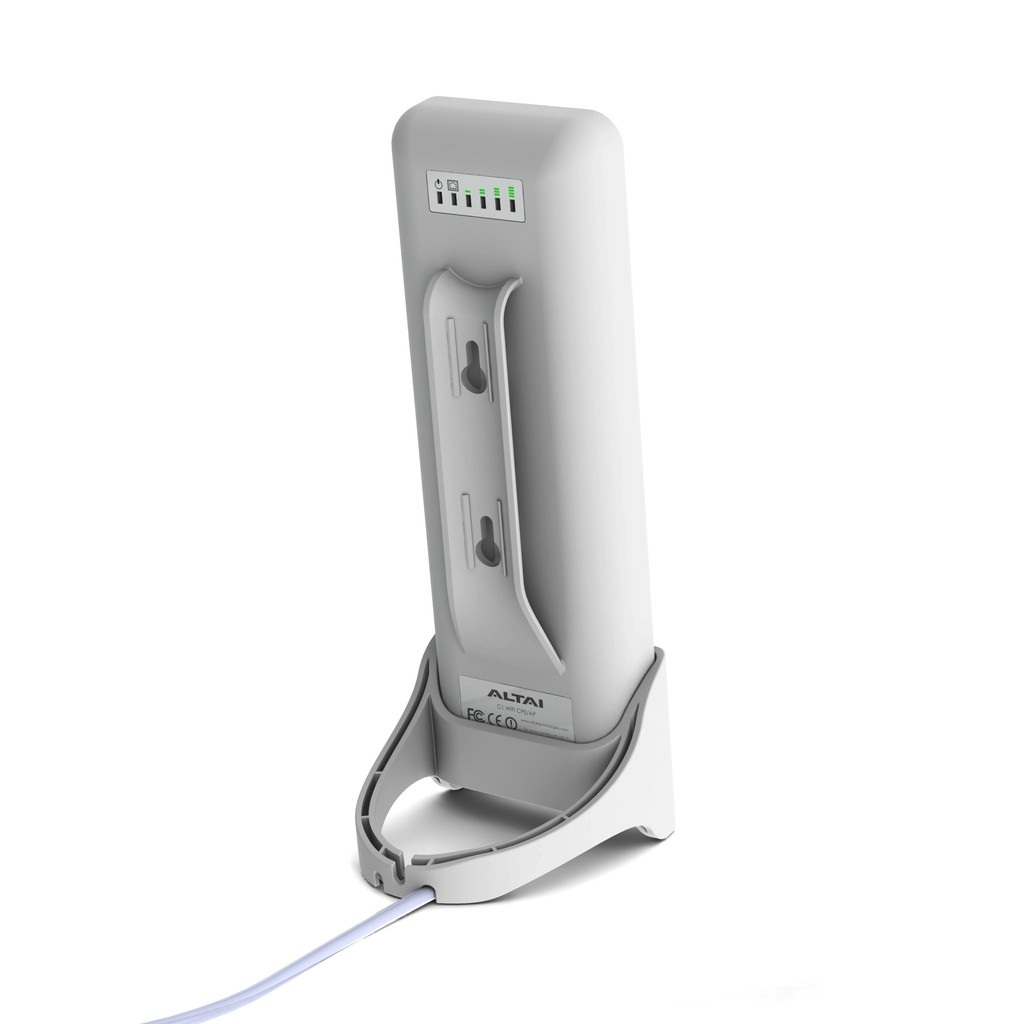

·  Mounting                                  Desktop, Pole, Wall or

Window-mounted

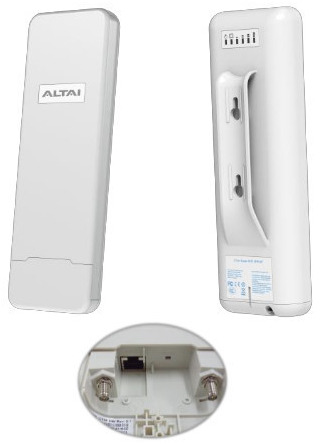

·  Network Interface                 10/100 Mbps Ethernet Port

·  LED Display                              Main Power Status

Ethernet Status

8-level Signal Strength

Power Supply                    (User configurable)

·  Power Supply                          18V Passive PoE PD or 802.3af

PoE PD via Adapter

·  Power Consumption            6 W (Typical) / 8 W (Max.)

Environmental Specification

·  Operating Temperature     -20 °C to +55 °C

·  Storage Temperature          -40 °C to +80 °C

·  Humidity                                   5 – 95% (Non-condensing)

·  Wind Loading                         Up to 200 km/h (124 mph)

·  Weatherproof                        Outdoor UV Stabilized Plastic

IP55 Compliant
